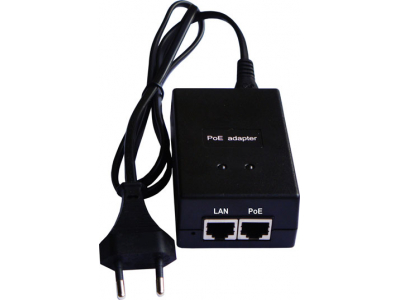

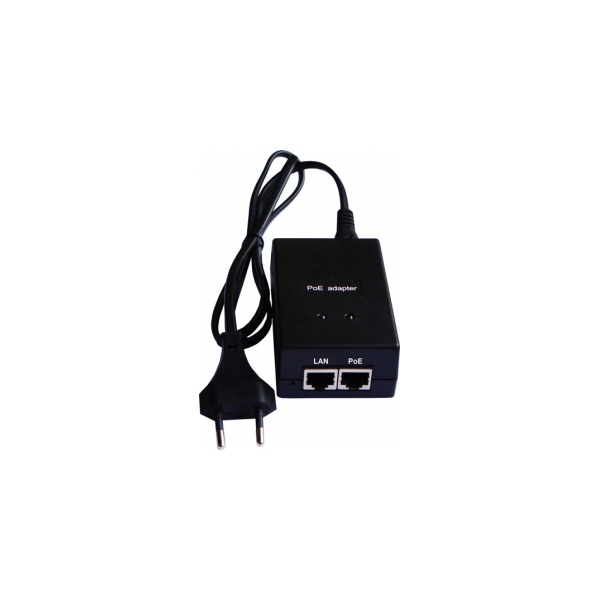

PoE injector 48V, 0.4A, 19.2W

PoE injector 48V, 0.4A, 19.2W

Features:• Complies with IEEE 802.3/802.3u 10/100Base-T• Provides 48Vdc via pairs 4,5(+)& 7,8(-) of RJ-45 cable and for power supply safety• Distance up to 100 meters• Provides up to 15.4W of Power over EthernetTechnical Specifications:• AC VOLTAGE: 90Vac TO 264Vac INPUT• FREQUENCY: 47Hz TO 63Hz• AC CURRENT: 0.6A MAX. • INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25°C.• OUTPUT VOLTAGE: +48Vdc• OUTPUT TOLERANCE: 45.6V~50.4V• RIPPLE & NOISE: 480mVp-p• LOAD: MIN 0A MAX0.4A• RISE TIME: 50mS MAX.• HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT• Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80%• OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE• Operating Temperature: 0°C~40°C• Operating Humidity: 20%~90% (Non-Condensing)
