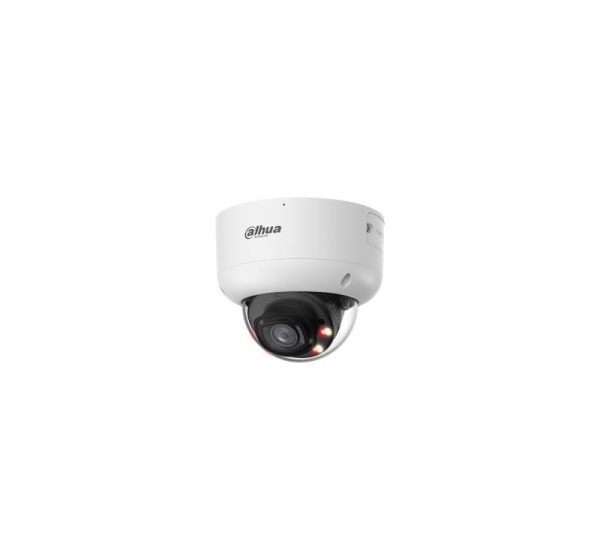

NET CAMERA 8MP DOME/HDBW5859R1ASEPV0280BPRO DAHUA
NET CAMERA 8MP DOME/HDBW5859R1ASEPV0280BPRO DAHUA
|
|
8MP WizColor Fixed-focal Dome WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)
| Warranty (months) | 36 |
| Packaging quantity | 1 |
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.16 |
| Form factor | Dome |
| Product colour | White |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Number of effective pixels (H x V) | 3840 (H) × 2160 (V) |
| Optical sensor size | 1/1.8" |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focus | Yes |
| Focal length range | 2.8 mm; 3.6 mm |
| Maximum aperture number | 1 |
| B/W night vision distance | 60 |
| LED type | IR/White |
| 3D NR (Noise Reduction) | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto/Manual |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 8 |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Compatible memory cards | MicroSDXC |
| Maximum memory card size | 1000 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Built-in siren | Yes |
| Video motion detection | Yes |
| Power consumption (max) | 23.9 |
| Power consumption (typical) | 4.1 |
| Operating temperature (T-T) | –40 °C to +60 °C |
| Diameter | 126 |
| Weight | 730 |
| Width | 105 |
| Audio input | 1 |
| Audio output | 1 |
| Lens mount interface | M16 |
| Power requirements | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Model | IPC-HDBW5859R1-ASE-PV-PRO |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003584 |
| Unit Calculated Weight | 0.98 |
