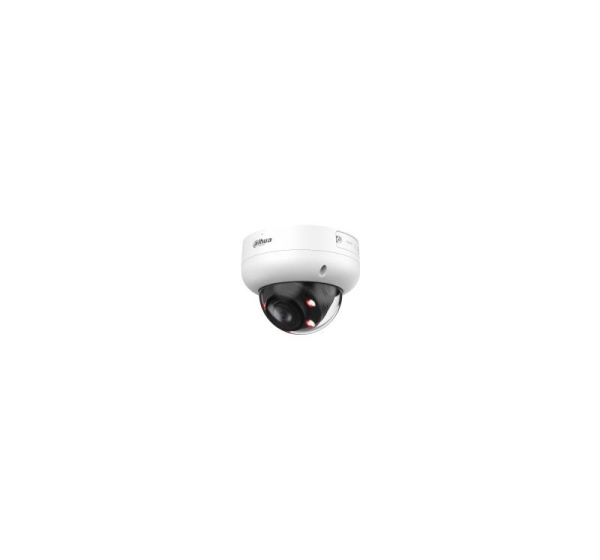

NET CAMERA 6MP DOME/HDBW3649R-ZAS-IL-27135 DAHUA
NET CAMERA 6MP DOME/HDBW3649R-ZAS-IL-27135 DAHUA
|
> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 × 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67, IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm-13.5 mm, Field of View 114°–32°
| Warranty (months) | 36 |
| Packaging quantity | 1 |
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3649R-ZAS-IL |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.15 |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Effective sensor resolution | 6 |
| Optical sensor size | 1/2.7" |
| Sensor type | CMOS |
| B/W night vision distance | 50 |
| Night vision | Yes |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 |
| DC output voltage | 12 |
| Power consumption (max) | 9.8 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | –30 °C to +60 °C |
| Model | IPC-HDBW3649R-ZAS-IL-27135 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00294 |
| Unit Calculated Weight | 0.75 |
