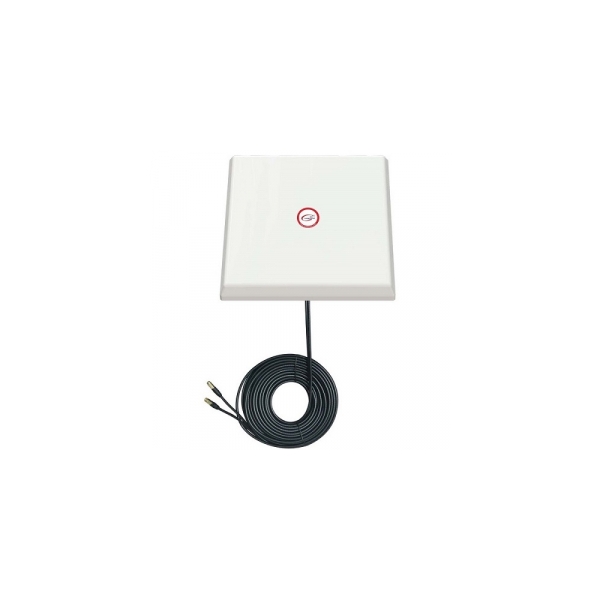

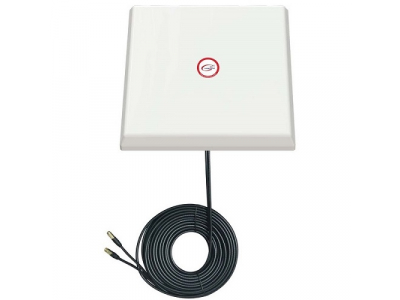

5G / LTE / CBRS 2x2MIMO Antenna, 1.7-3.8GHz, 2x 21dBi
5G / LTE / CBRS 2x2MIMO Antenna, 1.7-3.8GHz, 2x 21dBi
|
|
LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 21dBi, SMA-Male connector
Features:
Panel design, dual slant polarization antenna,1710-2690MHz / 3300-3800MHz, 2x 21dBi.
Application: LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With two 15m long cables.
Lightning protection: DC grounding.
Environmentally friendly.
Technical specification:
Frequency range: 1710-2690MHz / 3300-3800MHz.
Gain: 2x 21dBi.
VSWR: <2.
Impedance: 50 ohms.
Max. power per port: 50W.
Connector: 2x SMA-male.
Cables: 2x RG58 copper.
Cable length: about 15m.
Mounting: on a pole: diameter 30-50 mm.
Material: PC, ABS.
Dimensions: 400 x 400 x 50 mm.
Polarization: dual slant +/-45°.
Color: white.
Weight: 2.5kg.
Operating temperature: -40°C~ +70°C.
Operating humidity: up to 95%RH.
Warranty: 24 months.
