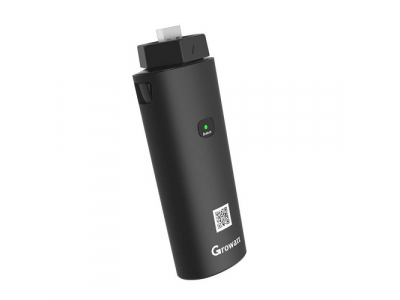

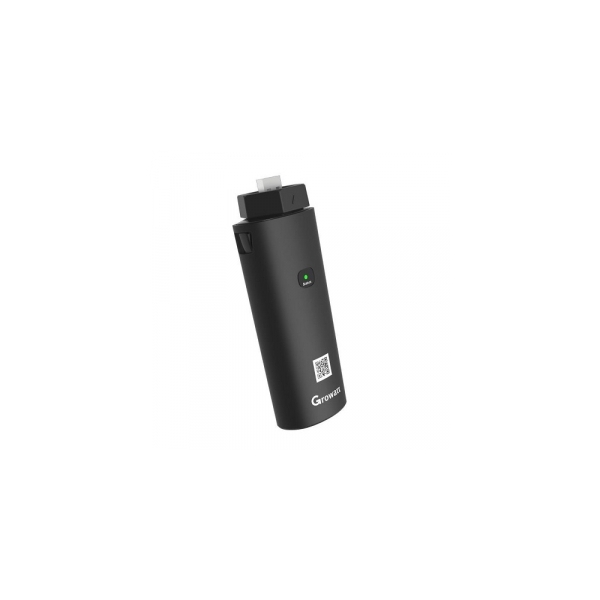

Cellular Interface GROWATT Shine 4G-X
Cellular Interface GROWATT Shine 4G-X
|
Cellular Interface GROWATT Shine 4G-X
Features:
The interface is designed to link the Growatt inverter parameters to the Cloud server via 4G cellular network and monitor the operation of the solar power plant and produced energy.
The device is installed on the solar inverter to remotely detect and potentially troubleshoot PV system failures.
USB stick with built-in memory connects your PV system to 4G network.
The data of the connected inverter is saved for 30 days, in the event of an network failure.
Suitable for all On-grid Growatt X-series inverters.
Technical specifications:
Supported network: 4G/3G/2G.
System and frequency band:
GSM: 900/1800MHz.
WCDMA: B1/B5/B8.
LTE FDD: B1/B3/B5/B7/B8//B20.
LTE TDD: B38/B40/B41.
Inverter communication: USB - Modbus RTU protocol.
Server communication: Modbus TCP protocol.
SIM slot: standard SIM card (purchased separately).
Operating voltage: 5V.
Max. rated power: 1.2W.
Interface: USB Type-A.
Supported server: ShineServer (server.growatt.com).
Data transmission interval: 5 min.
Operating temperature: -30°C ~ +65°C.
Dimensions: 122x47x32 mm.
Weight: 60g.
Warranty: 12 months.
