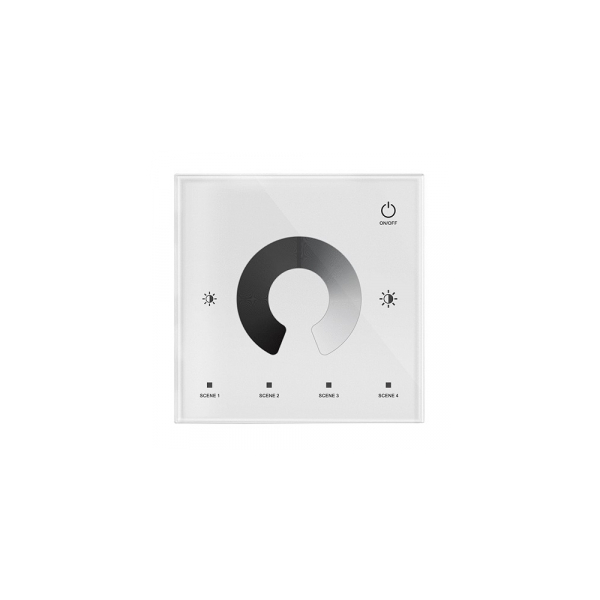

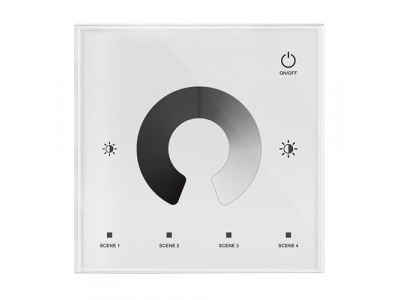

Touch Pannel Dimmer T1, 12-48VDC, 2Ch

Touch Pannel Dimmer T1, 12-48VDC, 2Ch

Wall-mounted dimming LED controller, PWM constant voltage controller, 12-48DC 2x 3/5A, for single-color LED strips, 2 channels, with touch buttons and touch wheel, supports 10 lighting levels and 4 scenes.
Features:The controller supports single-color lighting systems for controlling up to 2 dimmable LED strips.Allows smooth dimming or brightening of lighting. Soft dimming, switching on and off without flicker. You can control LED strips directly from the controller, without additional receivers.Separate convenient on/off button.4 different lighting settings (scenes) can be saved and activated with touch buttons. This allows you to select the desired lighting according to your mood with a single touch.The touch wheel allows convenient adjustment of lighting brightness in 10 levels.Separate touch buttons are provided for decreasing or increasing brightness in 10-level steps.The touch panel is easily found in the dark thanks to its elegant backlight.The controller uses PWM output to adjust the LED brightness by switching current pulses.Supports RF 2.4GHz single or multi-zone remote control.Luxurious design, glass panel. Mounted on the wall as a switch.The control regulator is universal, can work with various LED controllers and is compatible with remote controls.The device has integrated protection against short circuit, overheating and reverse polarity.
Specifications:Product model: T1.Number of channels: 2.Lighting systems: single-color.Voltage: 12-48V DC.Input current: 10.5A.Output current: 5A@12-24V / 3A@36-48V (per channel).Power: 120-288W.Dimming range: 0-100%.PWM frequency: 1KHz / 2KHz / 8KHz / 16KHz.Control area: 7 touch buttons, 1 touch wheel.Protection class: IP20 (not waterproof).Certificates: CE, EMC, LVD, RED, RoHS, FCC.Operating temperature: -30~+55°C.Compatible wire cross-section: 0.5-2.0 mmІ.Dimensions: 86 x 86 x 33 mm.Color: white.
Warranty: 24 months.
