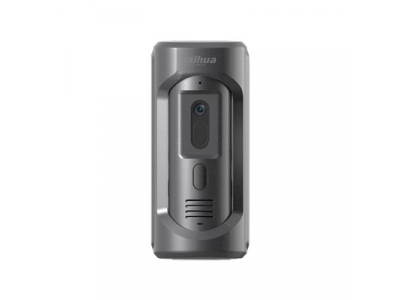

Outdoor Station for villa VTO2101E-P-S2

Outdoor Station for villa VTO2101E-P-S2

Features:  • HD CMOS camera • Zinc alloy panel, IP65,IK10 • ICR Night vision &Voice indication • Video & Audio messaging • TCP/IP,SIP • Surface mounted    Technical Specifications:  System • Main Processor Embedded Micro Processor • Operation System Embedded LINUX OS Camera • Image Sensor 1/2.7” 2MP CMOS • Focal Length 2.8mm • Angle of View H:100° • Angle of View adjustment Horizontal: -45° ~ +45° Video • Video Compression H.264 • Video Streaming Dual Stream • Day/Night Auto(ICR), 5m • BLC Mode WDR • White Balance Auto/Natural/Street Lamp/Outdoor/Manual • Gain Control Auto/Manual • OSD Support Audio • Audio Compression G.711 • Audio Input Omnidirectional Mic • Audio Output Built-in Speaker • Bidirectional Talk Support Dual-way Bidirectional talk • Audio processing Noise suppression, Echo cancellation Operation Mode • Keypad 1 Mechanical Button Interface • Door Control 1 • Alarm In 1 • RS485 1 Network • Ethernet 10M/100Mbps Self-adaptive • Network Protocol TCP/IP, SIP General • Ingress Protection IP65, IK10 • Tamper Switch 1 • Tamper Screw Support • Installation Surface Material • Front Panel: Zinc alloy • Rear Panel: Aluminum alloy • Holder: Aluminum alloy • Power DC 12V, PoE(802.3af) • Power Consumption Standby ?2.5W, Work ?7W • Working Temperature -40°C~+60°C • Relative Humidity 10%~90%RH • Dimensions 163.0mm×73.0mm×54.5.0mm • Weight 0.8Kg
