CONTROL PANEL GRADE 3/INTEGRA128 PLUS SATEL
Ražotāja kods |
|
INTEGRA128PLUS |
Ir piegādātāju noliktavā |
|
2
|

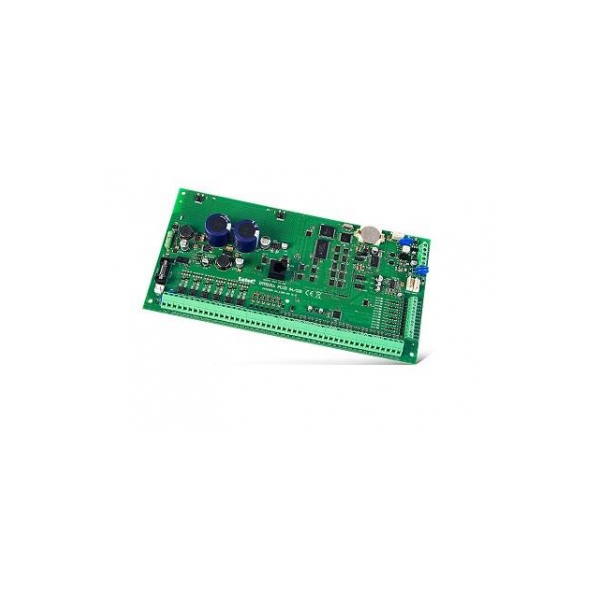

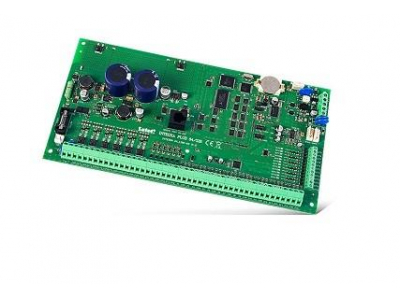

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 128 zones and outputs
- full compliance with EN50131 series of standards for Grade 3 equipment
- built-in advanced 2A+2A power supply with extended autodiagnostics
- up to 128 zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
- USB port for programming via PC
- up to 32 partitions, 8 tenants
- up to 128 fully programmable outputs
- dedicated buses for communication with keypads and expansion modules
- system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
- remote system operation with PC, smartphone or voice-guided telephone menu
- 64 independent timers for automatic control
- access control and home automation features
- non-volatile event log with 22527 entries, with on-line printing support
- support for 240+8+1 user codes
- firmware upgrades via PC
Shipping box quantity | 1 |
Dimensions | 264 x 134 mm |
Max. number of outputs | 128 |
Max. number of zones | 128 |
Shipping Box Width | 15 |
Shipping Box Depth | 19.5 |
Shipping Box Height | 5.8 |
Shipping Box Weight | 0.65 |
Full Description Line | Max. number of outputs 128|Max. number of zones 128 |
