CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL

Veikala kods   8105248
Ražotāja kods   INTEGRA64PLUS
EAN   5905033330368
Ir piegādātāju noliktavā   3

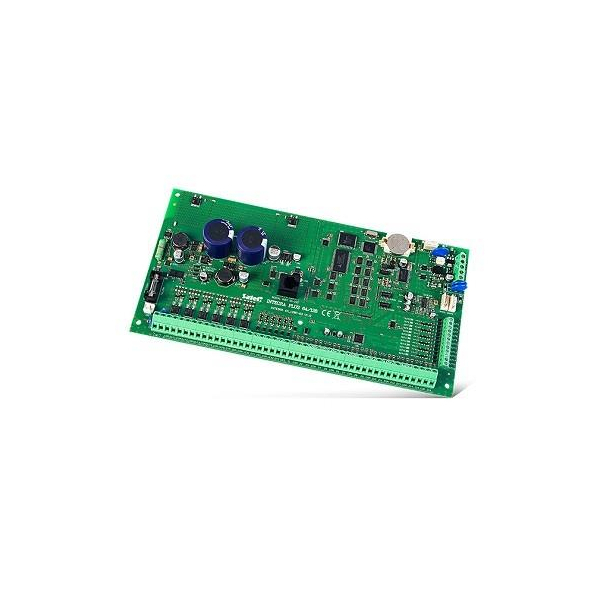

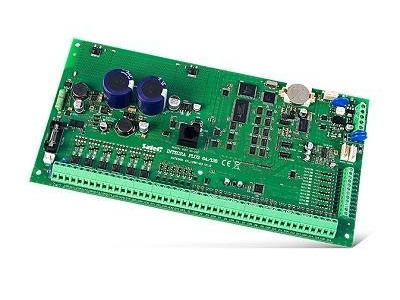

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs

  • full compliance with EN50131 series of standards for Grade 3 equipment
  • built-in advanced 2A+2A power supply with extended autodiagnostics
  • up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
  • USB port for programming via PC
  • up to 32 partitions, 8 tenants
  • up to 64fully programmable outputs
  • dedicated buses for communication with keypads and expansion modules
  • system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
  • remote system operation with PC, smartphone or voice-guided telephone menu
  • 64 independent timers for automatic control
  • access control and home automation features
  • non-volatile event log with 6143entries, with on-line printing support
  • support for 192+8+1 user codes
  • firmware upgrades via PC


Shipping box quantity1
Dimensions264 x 134 mm
Max. number of outputs64
Max. number of zones64
Shipping Box Width15
Shipping Box Depth29.5
Shipping Box Height6
Shipping Box Weight0.646
Full Description LineMax. number of outputs 64|Max. number of zones 64
