SSD ACC ADAPTER NVME/SATA/M.2/SP&LP PCEM2-D AXAGON
SSD ACC ADAPTER NVME/SATA/M.2/SP&LP PCEM2-D AXAGON
|
|
AXAGON PCEM2-D

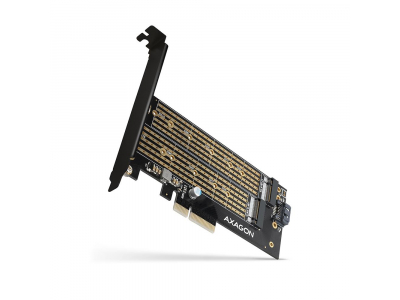

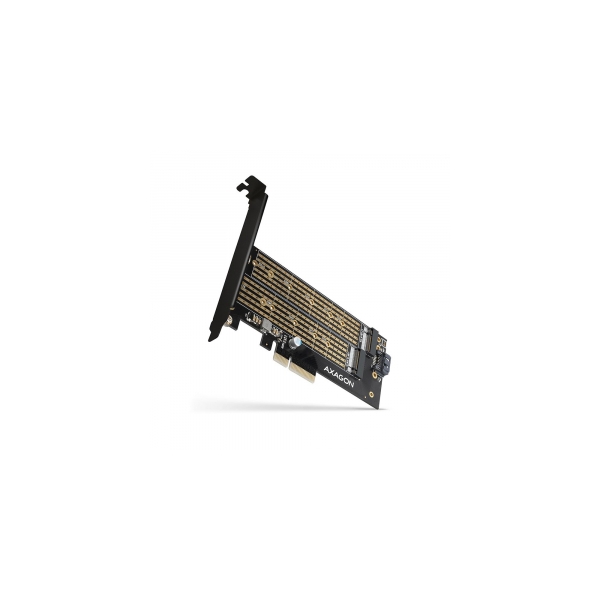

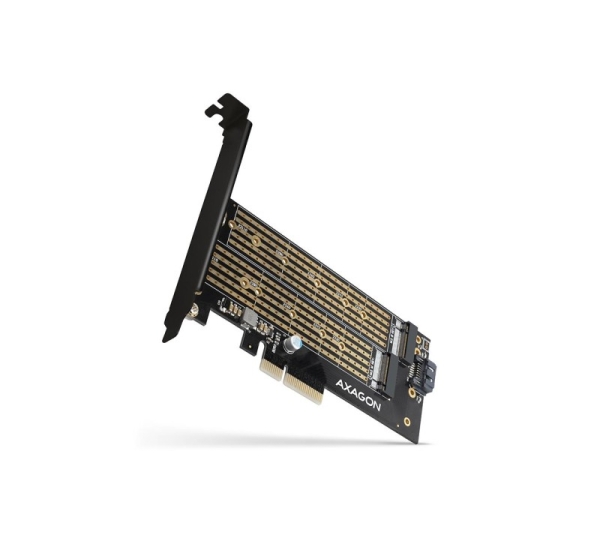

PCEM2-D PCIe NVMe+SATA M.2 adapter
A PCI-Express x4 adapter to connect up to two M.2 disks to a computer. 1x NVMe M-key + 1x SATA B-key.
The internal AXAGON PCEM2-D adapter allows to connect as many as two M.2 SSD to a desktop. So, it is an ideal choice for upgrading a desktop computer that has no M.2 slot.
The adapter supports the use of both one-sided and double-sided SATA and NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a length up to 110 mm can be used. The simultaneous operation of both disks is commonplace.
Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. When compared to standard SATA SSDs, bit rates of NVMe SSDs are many times higher.
The high quality card design, including copper-plated vents, assists in a better dissipation of heat generated during the M.2 SSDs operation.
Double LEDs indicate either power on or data transfer in the M.2 slot.
The package also contains a low profile bracket for mounting the adapter into low profile cases.
| Warranty (months) | 24 |
| Packaging quantity | 1 |
| Vendor Homepage | www.axagon.eu/en/produkty/pcem2-d?ami=204 |
| Category Code | HDA |
| CnCode | 84733080 |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.03 |
| Unit Box Width | 0.13 |
| Model | PCEM2-D |
| Included Accessories | PCI-Express adapter with a standard bracket, low profile bracket, 2 pcs. thermally conductive pads, SATA data cable 50 cm long, mounting material and a screwdriver |
| Dimensions | 142 x 64 x 12 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000663 |
| Product Net Weight | 0.046 |
| Unit Calculated Weight | 0.13 |
