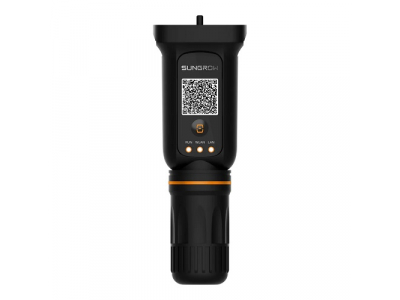

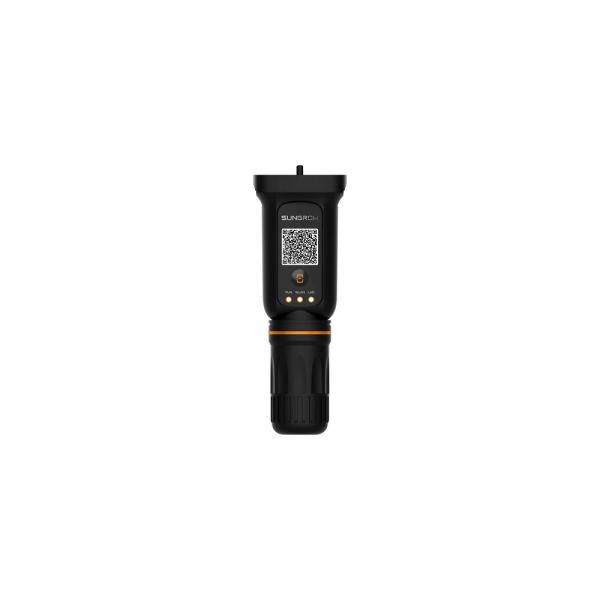

Sungrow LAN / WiFi Internet interface WiNet-S, RJ-45
Features:
Sungrow LAN/WiFi Internet communication module WiNet-S Dongle is designed to link Sungrow inverter parameters with iSolarCloud server via WLAN or LAN and monitor the operation and energy output of the solar plant.
A LAN connection is recommended for cabling in a suitable environment. The RJ-45 plug shall be connected to the solar inverter and a network cable shall be connected to the router, then the connection between the inverter and the server will be established automatically.
Supports Smart IV Curve Diagnosis, local and remote parameter setting, firmware updates.
The device features multifunctional control button and 3 LED indicators.
Suitable for Sungrow SG-RS / SG-RT / SH-RS / SH-RT / SG-CX series inverters.
Technical specifications:
Supported inverters: SG2.0RS / SG3.0RS / SG3.6RS / SG4.0RS / SG5.0RS / SG5.0RS / SG3.0RT / SG4.0RT / SG5.0RT / SG6.0RT / SG7.0RT / SG8.0RT / SG10RT / SG12RT / SG15RT / SG17RT / SG20RT / SH3.0RS / SH3.6RS / SH4.0RS / SH5.0RS / SH6.0RS /SG33CX / SG40CX / SG50CX / SG110CX.
Supported network: LAN/ WLAN.
Data transfer rate: 10/100Mbps.
Wi-Fi standard: IEEE802.11 b/g/n.
Max. communication range: 100 m.
Wi-Fi transmission power: IEEE802.11b <20dBm; IEEE802.11n HT20 <14dBm.
Wi-Fi frequency: 2.412 GHz-2.472 GHz.
Input: DC 5V / 2.1A.
Power consumption: <5W.
Interface with inverter: RJ-45.
Number of supported devices: 1.
Operating temperature: -30°C ~ +60°C.
Safety class: IP66.
Dimensions: 132x48x36 mm.
Weight: 73g.
Warranty: 24 months.
