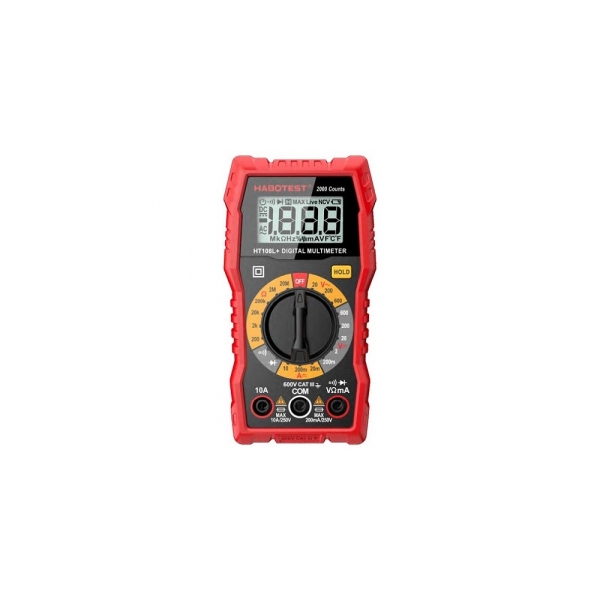

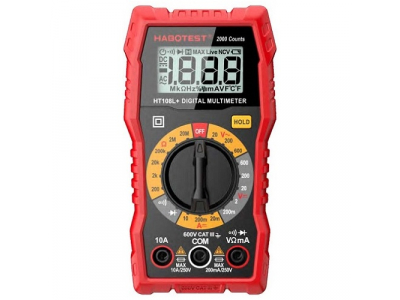

Multimeter DC600V/10A, AC600V
Multimeter DC600V/10A, AC600V
|
|
Multimeter DC600V, AC600V
Features:
Digital multimeter integrates multiple measurements functions as DC current, DC voltage, AC voltage, resistance, diode and circuit continuity tests.
With display backlight, low battery warning.
Stand on the back of the case allows the device to be positioned for better visibility of the readings.
Automatic power off for battery saving.
2000 counts display.
Compact, small and lightweight. Ergonomically shaped, comfortable to hold in hand.
Complete with test leads. Batteries are not included.
Technical specifications:
DC voltage: 200mV / 2V / 20V / 200V / 600V; accuracy +/-(1.0%+5).
AC voltage: 20V / 200V / 600V; accuracy +/-(1.0%+5).
DC current: 20mA / 200mA; accuracy +/-(1.5%+5).
DC current: 10A; accuracy +/-(2.0%+5).
Resistance: 200Om / 2kOm / 20kOm / 200kOm / 2MOm / 20MOm; accuracy +/-(1.2%+5).
Counts: 2000.
Display: yes.
Continuity: yes.
Diode test: yes.
Data hold: yes.
True RMS: yes.
Backlight: yes, bicolor.
Low power indicator: yes.
Auto power off: yes.
Auto / manual range: manual.
Power supply: 2x 1.5V AAA batteries (not included).
Weight: 91g.
Size: 151x75x48mm.
Safety rating: EN61010-2-030, EN61010-2-033, CATIII 600V.
Warranty: 24 months.
