| Warranty (months) | 36 |
| Packaging quantity | 1 |

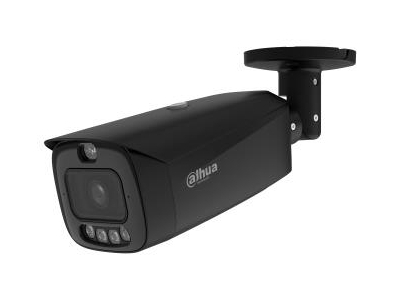

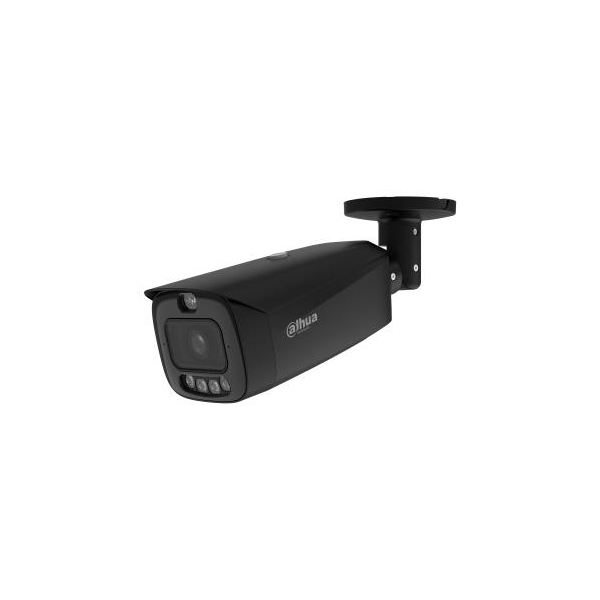

| Summary | Dahua Technology WizSense IPC-HFW3849T1-AS-PV-PRO. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 91 m, Observe distance: 36.4 m, Recognize distance: 18.2 m |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC-PRO-WizColor/IPC-HFW3849T1-AS-PV-PRO |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.136 |
| Unit Box Length | 0.339 |
| Unit Box Width | 0.148 |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive; 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 360 |
| Lens viewing angle, horizontal | 360 |
| Lens viewing angle, vertical | 90 |
| Minimum illumination | 0.007 |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 90 |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 4.4 |
| Detect distance | 91 |
| Fixed focal length | 3.6 |
| Identify distance | 9.1 |
| Number of lenses | 1 |
| Observe distance | 36.4 |
| Recognize distance | 18.2 |
| LED type | White |
| Night vision | Yes |
| Night vision distance | 30 |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps-20480 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 20 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2668 x 1512/2688 x 1512/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+ |
| Video formats supported | H.264/H.264+/H.264B/H.265/H.265+ |
| Video streaming | Yes |
| Audio formats supported | G.711 A-law/G.726/PCM |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 |
| Maximum memory card size | 256 |
| ROM capacity | 128 |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 76 |
| Power consumption (Power over Ethernet (PoE)) | 9.1 |
| Power consumption (typical) | 4.5 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Height | 84.7 |
| Length | 288.4 |
| Width | 94.4 |
| Number of cameras | 1 |
| Model | HFW3849T1-ASPV0280B-PRO-B |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0068234 |
| Unit Calculated Weight | 1.47 |
