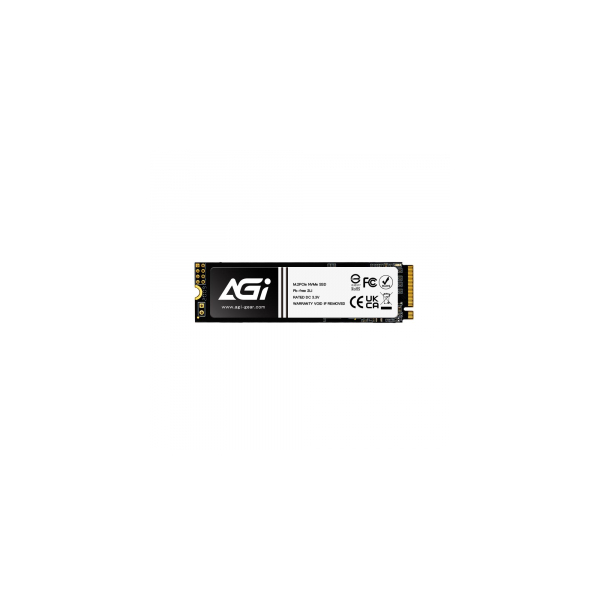

AGI PCIe SSD
Using the latest 3D NAND flash memory technology
PCIe Gen3x4 Product line
3D NAND is the latest flash memory technology currently on the market, which can further increase the max capacity.
Where to use
The M.2 PCIe Gen3x4 2280 specification can be assembled in the M.2 interface of a new generation computer, and significantly improved the transmission speed by PCIe technology
Speed up 30 times to replace HDD
"This is internal test data, and actual read and write speeds may vary depending on system hardware, testing software, operating system, and capacity."
| Warranty (months) | 36 |
| Packaging quantity | 1 |
| Stock quantity type | lower_bound |

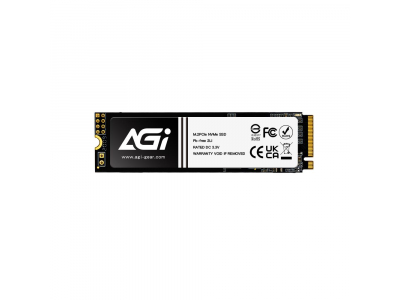

| Summary | AGI Technology AI298. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 3000 MB/s, Write speed: 1400 MB/s, Component for: PC |
| Vendor Homepage | https://agi-gear.com/product/ai298-m-2-pcie-ssdqlc/ |
| Category Code | SSU |
| CnCode | 84717098 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.015 |
| Component for | PC |
| ECC | Yes |
| Interface | PCI Express 3.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 1600000 |
| Memory type | 3D NAND |
| NVMe | Yes |
| NVMe version | 1.3 |
| PCI Express interface data lanes | x4 |
| Read speed | 3000 |
| SSD capacity | 512 |
| SSD form factor | M.2 |
| TBW rating | 300 |
| Write speed | 1400 |
| Operating voltage | 3.3 |
| Depth | 80 |
| Height | 3.5 |
| Weight | 6 |
| Width | 22 |
| Package type | Box |
| Operating shock | 1500 |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Compliance certificates | BSMI/CE/Federal Communications Commission (FCC)/RoHS/VCCI |
| Warranty period | 3 |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.0003666 |
| Unit Calculated Weight | 0.036 |
