NET ADAPTER USB3.2 1GB/ADE-TR AXAGON
| Ir piegādātāju noliktavā |
|
9
|

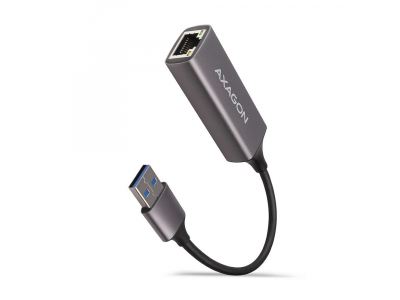

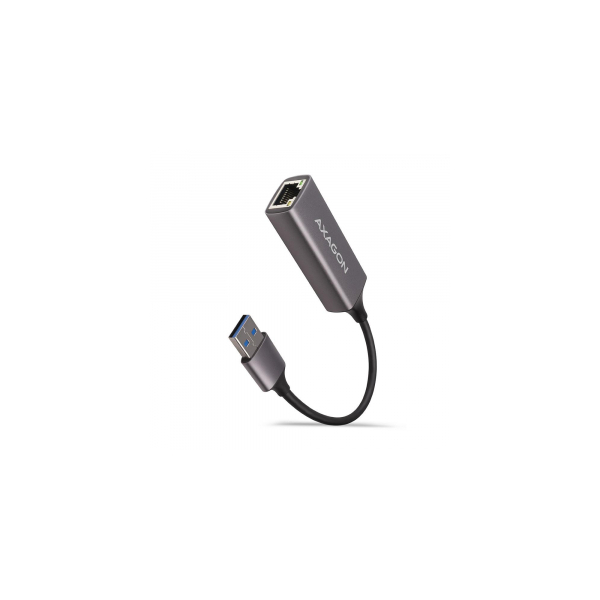

The external network card AXAGON ADE-TR easily converts USB 3.2 Gen 1 (USB 3.0) port to Gigabit Ethernet port.
It is compatible with 10/100/1000 Mbit/s transfer speeds. The Gigabit network adapter expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection.
The network card with Gigabit bandwidth offers a wide range of features, such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with virtual LAN (VLAN) and advanced Power Management features.
The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Thanks to its compact dimensions and minimal weight, it is an ideal accessory for laptops. The support for current versions of Windows, Mac OS X, and Linux operating systems allows it to be used for any desktop, laptop or ultrabook.
In modern operating systems from Windows 8.1 above, the adapter allows easy automatic installation without the need for an Internet connection. Also some phones and tablets with the Android operating system, such as the Sam-sung S9 +, can be connected to the Internet with a network Ethernet cable with suitable adapter* thanks to this adapter.
- Full Plug and Play and Hot Plug support
- Supports CDC-ECM – for automatic installation of drivers across different OSs
- Adapter power supply via USB (bus power) - no auxiliary power supply required
- Two LEDs indicate the network activity and connection of the adapter to the USB and network
- Weight 28 g (incl. cable)
- The Realtek RTL8153 chipset is used
| Summary | Axagon ADE-TR. Технология подключения: Проводная, Основной интерфейс: USB, Интерфейс: Ethernet. Максимальная скорость передачи данных: 1000 Мбит/с. Питание через USB. Цвет товара: Серый |
| Vendor Homepage | https://www.axagon.eu/en/produkty/ade-tr |
| Category Code | NIC |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.03 |
| Unit Box Width | 0.1 |
| Версия USB | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Интерфейс | Ethernet |
| Количество портов Ethernet LAN ( RJ-45) | 1 |
| Основной интерфейс | USB |
| Технология подключения | Проводная |
| Контроллер LAN | Realtek RTL8153 |
| Максимальная скорость передачи данных | 1000 |
| Поддержка Jumbo Frames | Да |
| Поддержка VLAN | Да |
| Подключение Ethernet | Да |
| Полнодуплексный режим | Да |
| Скорость передачи данных Ethernet LAN | 10/100/1000 |
| Стандарты сети | IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u |
| Тип Ethernet интерфейса | Гигабитный Ethernet |
| Функция Wake-on-LAN | Да |
| Plug & Play | Да |
| Внутренний | Нет |
| Комплектующие для | ПК/ноутбук |
| Светодиодные индикаторы | Да |
| Сертификация | CE, RoHS |
| Страна производства | Китай |
| Цвет товара | Серый |
| Чипсет | Realtek RTL8153 |
| Питание через USB | Да |
| Другие поддерживаемые операционные системы | Android |
| Поддерживаемые операционные системы Linux | Kernel 2.6.31/Kernel 2.6.33 |
| Поддерживаемые операционные системы Mac | Mac OS X 10.6 Snow Leopard/Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mavericks/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey/Mac OS X 13.0 Ventura |
| Поддерживаемые операционные системы Windows | Windows 10/Windows 10 x64/Windows 7/Windows 7 x64/Windows 8/Windows 8 x64/Windows 8.1/Windows 8.1 x64/Windows Vista/Windows Vista x64/Windows XP |
| Поддерживаемые серверные операционные системы | Windows Server 2003/Windows Server 2003 x64/Windows Server 2008/Windows Server 2008 x64/Windows Server 2012/Windows Server 2012 x64/Windows Server 2016/Windows Server 2016 x64 |
| Вес | 28 |
| Высота | 59 |
| Глубина | 16 |
| Ширина | 24 |
| Высота упаковки | 203 |
| Глубина упаковки | 28 |
| Масса брутто | 66 |
| Ширина упаковки | 100 |
| Инструкция | Да |
| Поставляемые кабели | USB |
| Compliance certificates | CE/RoHS |
| Гарантийный срок | 2 |
| Модель | ADE-TR |
| Модель | ADE-TR |
| Количество в транспортной упаковке | 1 |
| Объем | 0.00019/0.0006 |
| Вес в упаковке | 0.08 |
