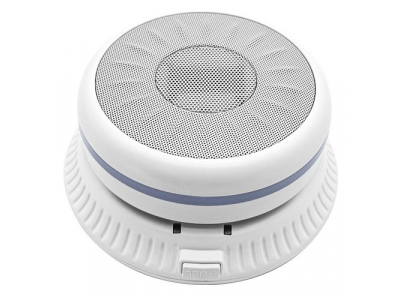

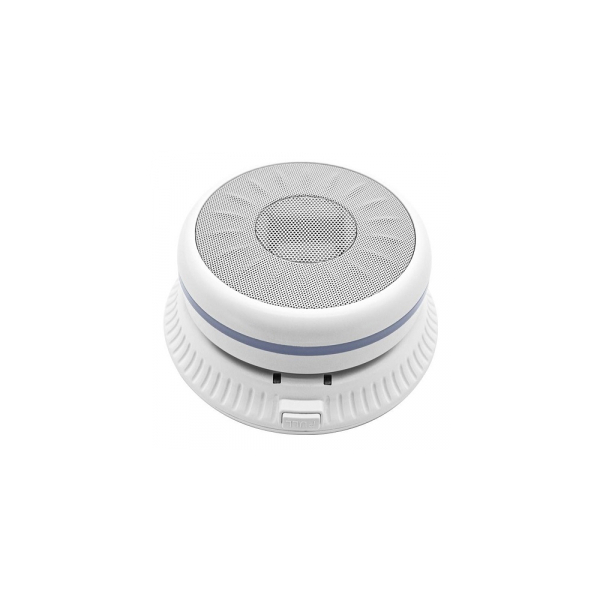

Vape Detector with Passive relay output, Tuya, Wi-Fi
The vape detector is a reliable solution for ensuring a safe and healthy educational environment. The device quickly and accurately detects electronic cigarette and heated tobacco smoke, helping to effectively control their use in school premises. The integrated Tuya/SmartLife application allows school administrations to receive real-time notifications of violations, monitor sensor readings, and ensure preventive control without the need for constant physical supervision. Mounted on ceilings in classrooms, restrooms, corridors, or other sensitive areas, this device becomes an effective prevention tool, reducing the risk of students using prohibited products within the school. Clear audible and visual alerts, combined with notifications sent to mobile phones, allow immediate response, while the built-in backup battery ensures uninterrupted operation even in the event of a power outage.
Features:
The device uses laser scattering sensors capable of accurately detecting particulate matter (PM2.5). When these particles enter the human body, they can cause long-term damage to the respiratory system.
The integrated TUYA Wi-Fi platform connects the device to a mobile application, allowing real-time monitoring, alarm notifications, sensitivity adjustments, and additional remote functions.
The detector has both audible (>85 dB) and visual (LED) alarms and sends alerts directly to the mobile application.
A built-in lithium battery ensures continuous operation during power interruptions.
The specially perforated housing is designed to increase sensitivity while reducing false alarms.
The device is equipped with self-diagnostic and alarm mute functions. In case of a power failure or tampering attempt, the system activates both audible and visual alarms and simultaneously sends alerts to the mobile application.
It is recommended to mount the detector on the ceiling, directly above potential smoke sources, at an optimal height of 2-4 meters above the floor. For precise detection, the device should be installed in an open area with natural air circulation, but not near fans, air conditioners, or ventilation ducts, as strong airflow can interfere with particle detection. For large rooms, multiple detectors should be installed to cover the entire monitoring area effectively.
Due to its reliability and fast response, this detector is particularly suitable for installation in schools, where it helps prevent underage use of electronic cigarettes and heated tobacco. It can also be used in offices, dormitories, public spaces, and other indoor areas where clean air and control of prohibited smoke are essential.
Technical specification:
Sensors: PM2.5 laser.
Voltage: 220-240V AC.
Battery: 3V lithium backup battery.
PM2.5 detection range: 0-999 µg/m³.
Response time: 5 s.
Detection distance: 3 meters.
Audible alarm: >85 dB.
Visual alarm: red LED.
Alarm current: <300 mA.
Standby current: 200 mA.
Wi-Fi frequency: 2.4 GHz (2.412~2.4835 GHz).
Application: Tuya Smart / Smart Life (Android / iOS).
Test button: yes.
Battery backup operation time: 2–5 hours.
Battery lifespan: 5 years.
Operating temperature: -10°C ~ +50°C.
Operating humidity: up to 80% (non-condensing).
Mounting: ceiling-mounted.
Housing material: ABS plastic V-0 (fire-resistant).
Dimensions: Ø135mm x 65mm.
Color: white.
Weight: 350 g.
Certificates: CE 2014/30/EU (EMC).
Included: mounting screw kit.
Warranty: 24 months.
For detailed information, please refer to the user manual, which you can download here: http://gofile.me/2xtvT/Px31tjCDw
