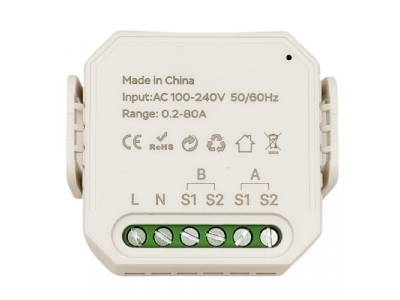

Smart Energy Meter, 2P, 80A, Wi-Fi, Tuya

Smart Energy Meter, 2 Channels, 80A, Wi-Fi, Tuya, with Two CT Current Sensors
Features:The smart dual-channel energy meter is an advanced, compact device designed for accurately monitoring energy consumption in two separate circuits. It is ideally suited for single-phase systems with two independent branches, or for partial monitoring of three-phase systems (e.g., two out of three phases).The device measures voltage, current, power, and energy consumption independently for each of the two channels.Current measurement up to 80A per channel ensures precise monitoring of connected loads.It uses two 10 mm diameter CT (Split-core) current transformer modules, allowing for quick and convenient installation without interrupting the existing power supply.Note: When installing, please ensure that the circuit measured by each CT sensor is on the same phase as the circuit supplying power to the module. Otherwise, the readings may be inaccurate or inconsistent.Convenient device connectivity via the Tuya smart home app. The app provides real-time energy consumption history and data analysis.Operates over 2.4GHz Wi-Fi. The Tuya app supports Android and iOS smart devices.Voice control compatible with Amazon Alexa and Google Assistant.The device supports smart automation via the Tuya platform. When power, voltage, or current reaches a specified threshold on either channel, it can trigger actions such as turning a Tuya-compatible switch on or off. This allows for automatic load management, energy-saving routines, or safety-related shutdowns — all configurable within the Tuya Smart or Smart Life app.Includes LED status indicator and pairing button.Small, lightweight, and compact. Flexible installation in distribution panels. Comes with a bracket for mounting on a DIN 35mm rail or wall.Easily integrates into smart systems.Ideal for residential and office applications.
Technical specifications:Number of channels: 2.Measurement current: 0.2–80 A.Operating voltage: 100–240V AC.Frequency: 50/60 Hz.Energy measurement accuracy: ±2%.Wi-Fi frequency: 2.4 GHz.Wi-Fi standards: 802.11b/g/n.App: Tuya Smart / Smart Life (Android, iOS).Works with Amazon Alexa & Google Assistant.Reset button: yes.Indicator light: yes.Operating temperature: -10°C to +55°C.CT measurement aperture diameter: 10.5 mm.CT cable length: 0.7 m.Dimensions: 46 x 46 x 21.3 mm.
Warranty: 24 months.
