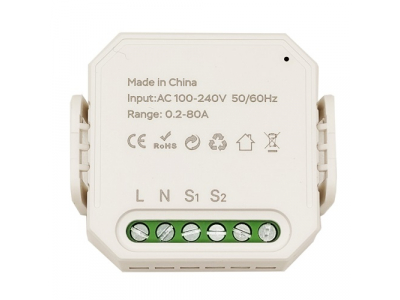

Smart Energy Meter, 1P+N, 80A, Wi-Fi, Tuya

Smart Energy Meter, 1P+N, 80A, Wi-Fi, Tuya, with CT Current SensorFeatures: The smart energy meter is an advanced, compact device designed for efficient and accurate energy consumption monitoring. It is intended for use in a single-phase system with a neutral wire (1P+N). It has a single measurement channel, allowing it to monitor only one circuit (e.g., household sockets, lighting, or low-power loads).It measures voltage, current, power, and energy consumption.Current measurement up to 80A ensures precise monitoring of consumed energy.It uses a 10mm diameter CT (Current Transformer) sensor module (Split-core CT), allowing for quick and convenient installation without interrupting the existing power supply.Note: Only one wire (either L or N) should pass through the CT module; passing both will result in a zero reading.Convenient device connectivity via the Tuya smart home app. The app provides real-time energy consumption history and data analysis.Operates over 2.4GHz Wi-Fi. The Tuya app supports Android and iOS smart devices.Voice control compatible with Amazon Alexa and Google Assistant.Includes LED status indicator and pairing button.Small, lightweight, and compact. Flexible installation in distribution panels. Comes with a bracket for mounting on a DIN 35mm rail or wall.Easily integrates into smart systems.Ideal for residential and office applications.
Technical specifications:Number of channels: 1.Measurement current: 0.2–80 A.Operating voltage: 100–240V AC.Frequency: 50/60 Hz.Energy measurement accuracy: ±2%.Wi-Fi frequency: 2.4 GHz.Wi-Fi standards: 802.11b/g/n.App: Tuya Smart / Smart Life (Android, iOS).Works with Amazon Alexa & Google Assistant.Reset button: yes.Indicator light: yes.Operating temperature: -10°C to +55°C.CT measurement aperture diameter: 10.5 mm.CT cable length: 0.7 m.Dimensions: 46 x 46 x 21.3 mm.
Warranty: 24 months.
