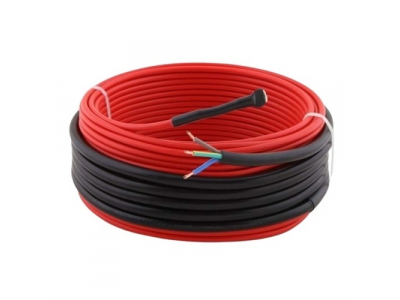

Heating Cable 450W, 37.5m, 12W/m, AC 230V

Electric Heating Cable 450W, 37.5m, 12W/m, AC 230V
Features:This thin, constant power underfloor heating cable is designed to provide comfortable and even heat distribution in indoor spaces.With a diameter of just 3.6 mm, the flexible cable is ideal for renovation projects or rooms with limited installation height and complex layouts.It is suitable for use under various floor coverings, including tiles, laminate, wood floor and marble.The solid heating core ensures uniform temperature distribution along the entire cable length, precise power output (12 W/m), and reduces the risk of overheating or uneven heating.The twin conductor structure allows for single-end connection, simplifying and speeding up installation - especially useful in confined or irregular spaces like bathrooms or along walls.The inner FEP (fluoropolymer) insulation provides high thermal resistance and durability, while the outer PVC jacket protects against mechanical damage.An integrated aluminum shielding layer minimizes electromagnetic interference, ensuring safe use in residential environments.High water-proofness allows the cable to be safely installed in bathrooms and other wet areas.High-quality materials ensure long-term reliability, safety, and electromagnetic stability.The heating cable is controlled via a thermostat to optimize energy consumption and protect the floor from overheating.The required cable length is determined based on the desired heat output (W/m²) and cable spacing. In standard rooms, an optimal spacing of approximately 12 cm is recommended. To calculate the required cable length, divide the heated floor area by the chosen spacing in meters - the result gives an approximate cable length in meters. For example, if the heated area is 6 m² and the spacing is 12 cm (0.12 m), the cable length would be 6 : 0.12 = 50 meters.The cable is suitable for both new construction and renovation projects. Due to its slim profile and twin conductor structure, it can be easily installed in tile adhesive or leveling compound under tiles, stone, laminate, or PVC flooring. Ideal for residential and commercial spaces such as kitchens, corridors, bathrooms, and other wet zones. Note: The photo is for illustrative purposes only; product dimensions (cable length, coil size) may vary depending on the selected variant.
Technical specifications:Application: Underfloor heating.Heating power: 12 W/m.Rated voltage: AC 230V.Outer dimensions: 3.6 mm.Cable length: 37.5 m.Power output: 450 W.Resistance: 117.56 Ohm.Resistance tolerance: +10% / -5%.Cable structure: twin conductor.Insulation: FEP (fluoropolymer).Outer jacket: PVC.Shield: aluminum-plastic tape.Short-circuit protection: Yes.Cold lead: 2.5 m.Conductor: Solid heating core.Connector: out splice.Protection class: IP68.Certifications: CE, EAC, TUV, CSA.Warranty: 25 years.
