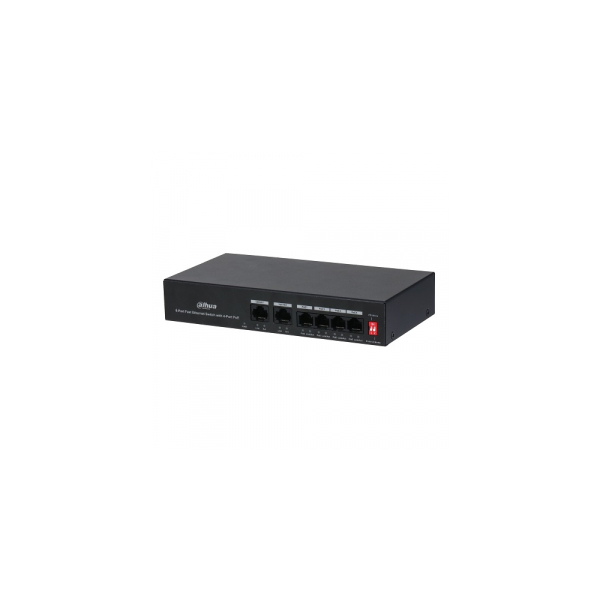

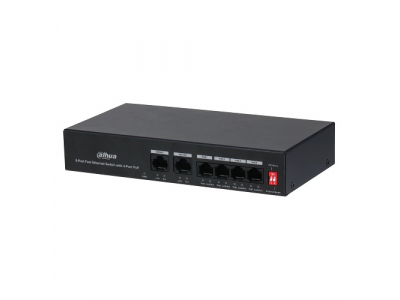

DPD pakubode PoE switch PFS3006-4ET-36
|
6-Port Fast Ethernet Switch with 4-Port PoE Product Overview The PFS3006-4ET-36 4-Port PoE switch supports four 10/100M PoE power supply ports and two 10/100M uplink ports. The power consumption of full load is 36W. Adopt DIP switch with bandwidth limit (100Mbps/10Mbps). After speed limitation, it supports 250 m long distance PoE transmission. The product supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost. The device It supports scenarios with 1 to 4 access points and is widely used in security monitorning network, such as supermarkets, hospitals and stations. Features: • Support four 10/100M PoE power supply ports, and two 10/100M uplink ports. • Support 802.3af and 802.3at standards. • OperatingTemperature: -10°C to +55°C. • Support 250 m long distance PoE transmission. • Support PoE watchdog. Technical Specifications: • Model PFS3006-4ET-36. • Data Transmission Port: 4 PoE ports with 10/100 Mbps Base-TX; 2 uplink ports with 10/100Mbps Base-TX. • Power supply: AC100–AC240V. • Power Consumption: Idling: 0.5W; Full load: 36W. • PoE Budget: Port1-4 < /=30W, whole PoE budget < /=36W. • PoE Protocol IEEE802.3af/ IEEE802.3at. • PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-). • Communication Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3X. • Switching Capacity 1.2 Gbps. • Packet Forwarding 0.89 Mbps. • Jumbo Frame: 2048 byte. • MAC Table Size 2K. • Application Humidity: 10%~90%RH. • Thunderproof: Common Mode 6KV; Differential mode: 4kV. • ESD protection: Air discharge: 8 kV; Contact discharge: 6 kV. • Weight: 0.56 kg. • Working Temperature: -10°C~55°C. • Dimensions (W×D×H): 194.0 mm x 108.1 mm x 35.0 mm (7.64" x 4.26" x 1.38"). • Certifications: CE: EN60950; FCC.
