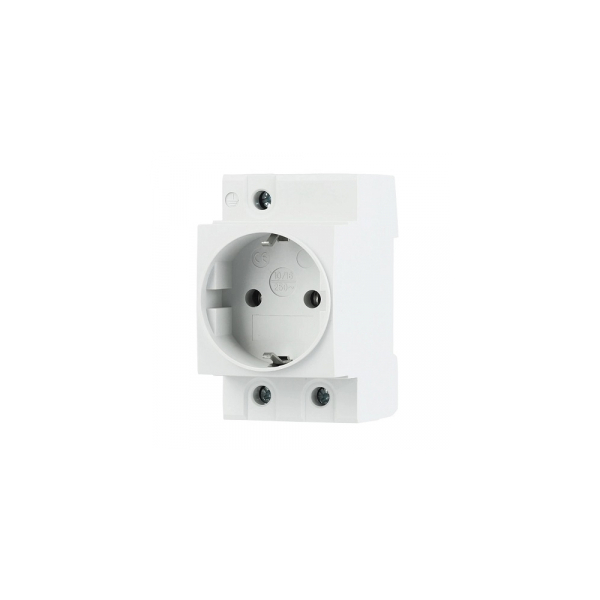

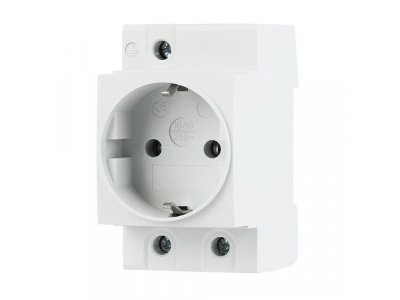

Modular Socket TMS-5, 16A, EU

Modular socket, 16A, 2P+grounding, DIN, IP20  Features: Modular socket outlet designed for 35 mm DIN rail mounting, and it's typically used in electrical distribution boards or control panels for various applications, to connect single-phase electrical devices. It has 2 poles (phase and zero) and protective grounding (PE). The socket has a standard European (Schuko) shape, it is convenient to use for connecting electrical devices in an auxiliary AC circuit (tools, measuring devices, portable lamps, power supplies, etc.). The housing is made of fire-resistant plastic. Note: the socket must be installed and connected by professional electrical personnel. Most often used in electrical distribution boards or control panels, industrial automation systems, labs and workshops for clean and regulated AC power access.
 Technical specifications: Number of contacts: 2P+PE (two poles + ground). Rated current: 16 A. Rated voltage: AC 220 V. Frequency: 50/60 Hz. Electrical service life: 5000 cycles. Protection class: IP20. Wire cross-section area: up to 25mm². Connection: from top and bottom. Installation: on DIN rail EN 60715 (35mm). Dimensions: 76 x 64.4 x 44 mm. Width on DIN rail: 44 mm. Color: white. Standard: IEC60884-1.
 Warranty: 24 months.
