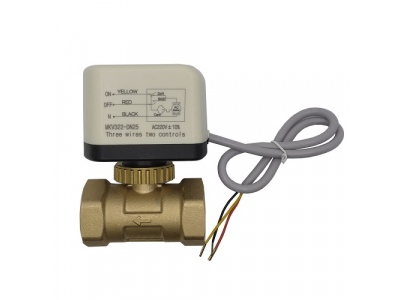

Omniva Motorized Valve, 220V, DN25
|
Motorized Ball Valve, 220V, DN25
Features:The electric valve consists of ball valve body and thermal actuator. It is designed to control the on/off the water system and can be used in a wide range of HVAC (heating, ventilation and air conditioning) systems.The energy-saving design of the valve allows the power cut off when the valve is fully open or closed. The power consumption (only when you open and close the valve): 4W.Dual control, stable operation.Reliable and robust brass valve body for long service life.
Technical data:Application: water systems.Operating voltage: AC 220V ± 10%, 50/60Hz.Actuation time: up to 15s (valve on); up to 15s (valve off).Nominal pressure: 2.5 MPa.Power consumption: 4W.Connection diameter: DN 25mm.Inner diameter: 1 inch.Applications: cold/hot water, glycol water liquor (<50%).Medium temperature: 2°C ~ 90°C.Safety class: IP54.Insulation class: II (double insulation).Valve material: nickel-plated brass.Actuator housing material: ABS+PC engineering plastic.
Warranty: 24 months.
