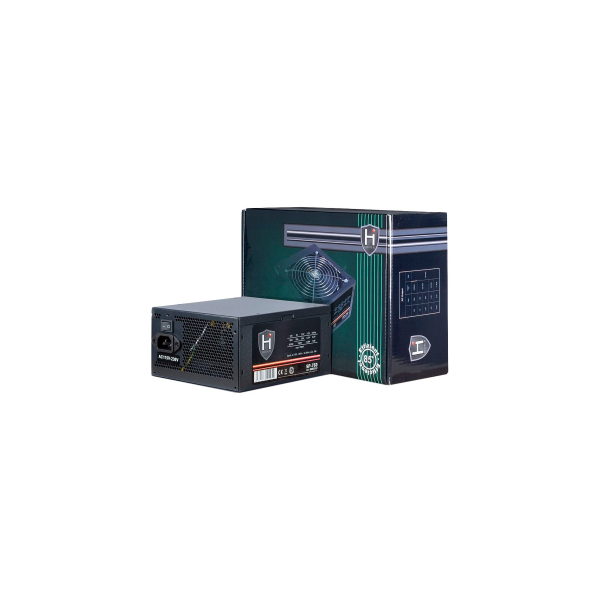

PSU HiPower SP-750, 750W
| Power Device Type | Power Supply |
| Power Device Location | Internal |
| Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Input Frequency | 50/60 Hz |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | IEC-320 C14 |
| Output Voltage | DC 3.3/5/±12 V |
| Maximum Output Power | 750 W |
| Circuit Protection | Over Voltage Short Circuit Protection Over Power |
| Power Adapter and Power Supply Features | Automatic Fan Control |
| +3.3V | 20 A |
| +5V | 18 A |
| +12V | 60 A (620 W) |
| -12V | 0.3 A (3.6 W) |
| +5VSB | 2.2 A (11 W) |
| 20+4-pin Main Connector | 1 |
| 4/8-pin +12V Power Connector | 1 |
| 4-pin Peripheral Power Connector | 6 |
| 4-pin Floppy Drive Connector | 1 |
| S-ATA Connector | 6 |
| 6/8-pin PCI Express Connector | 2 |
| Maximum Fans Supported Quantity | 1 |
| Fans Installed Quantity | 1 |
| Fan Diameter | 140 mm |
| External Color | Black |
| Cable Included | Power Cord |
| Included Accessories | Cable Ties User Guide Screws |
| Depth (mm) | 150 mm |
| Height (mm) | 86 mm |
| Width (mm) | 160 mm |
| Nominal Weight | 1.48 kg |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 1.82 kg |
| Pack Weight Netto (kg) | 1.48 kg |
| Pieces in pack | 5 |
| Box Weight Brutto (kg) | 20 kg |
| Retail Packaging Net Weight Carton | 0.2 kg |
| Retail Packaging Net Weight Plastic | 0.2 kg |
| Packs in Box | 5 |
| Package Type | Box |
