Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.0|2xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGB850EDGETIWIFI
Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.0|2xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGB850EDGETIWIFI
|
|

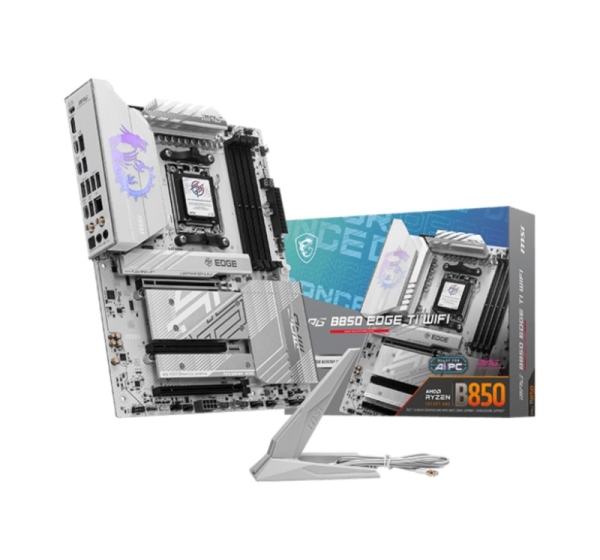

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Warranty (months) | 36 |
| Packaging quantity | 1 |
| Stock quantity type | lower_bound |
| Summary | MSI MPG B850 EDGE TI WIFI. Производитель процессора: AMD, Сокет процессора: Socket AM5, Совместимые серии процессоров: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Поддерживаемые типы памяти: DDR5-SDRAM, Максимальная внутренняя память: 256 GB, Тип слотов памяти: DIMM. Поддерживаемые интерфейсы носителя: M.2, Micro SATA III, Поддерживаемые типы накопителей: HDD & SSD, Уровни RAID: 0, 1, 10. Тип Ethernet интерфейса: 2.5 Gigabit Ethernet, Основной стандарт Wi-Fi: Wi-Fi 7 (802.11be), Wi-Fi стандартов: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Комплектующие для: ПК, Формат материнской платы: ATX, Семейство чипсета материнской платы: AMD |
| Vendor Homepage | https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI/Overview |
| Category Code | MBA |
| Unit Box Height | 0.275 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.075 |
| Аудио чип | Realtek ALC4080 |
| Выходные звуковые каналы | 7.1 |
| Комплектующие для | ПК |
| Поддерживаемые операционные системы Windows | Windows 11 x64 |
| Семейство чипсета материнской платы | AMD |
| Формат материнской платы | ATX |
| Цвет товара | Белый |
| Чипсет материнской платы | AMD B850 |
| Максимальная внутренняя память, поддерживаемая процессором | 256 |
| Поддерживаемые сокеты процессоров | Socket AM5 |
| Производитель процессора | AMD |
| Совместимые серии процессоров | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Сокет процессора | Socket AM5 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8400 |
| Каналы памяти | Dual-channel |
| Количество слотов памяти | 4 |
| Максимальная внутренняя память | 256 |
| Поддерживаемые типы памяти | DDR5-SDRAM |
| Поддерживаемые частоты памяти | 4800/5600/8400 |
| Тип слотов памяти | DIMM |
| Количество поддерживаемых дисков памяти | 8 |
| Количество поддерживаемых жестких дисков | 4 |
| Поддерживаемые интерфейсы носителя | M.2,Micro SATA III |
| Поддерживаемые типы накопителей | HDD & SSD |
| Поддержка RAID | Да |
| Уровни RAID | 0/1/10 |
| Встроенный графический адаптер | Нет |
| Number of CPU fan connectors | 6 |
| Number of RGB LED pin headers | 3 |
| Number of water pump connectors | 1 |
| RGB LED контактный разъем | Да |
| Количество разъемов SATA III | 4 |
| Общее количество коннекторов SATA | 4 |
| Разъем вентилятора центрального процессора | Да |
| Разъемы USB 2.0 | 4 |
| Разъемы USB 3.2 Gen 1 (3.1 Gen 1) | 4 |
| Разъемы USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
| Версия HDMI | 2.1 |
| Количество HDMI портов | 1 |
| Количество портов Ethernet LAN ( RJ-45) | 1 |
| Количество портов USB 2.0 | 4 |
| Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-A | 1 |
| Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-A | 2 |
| Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-С | 3 |
| Bluetooth | Да |
| Wi-Fi | Да |
| Wi-Fi стандартов | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Версия Bluetooth | 5.4 |
| Основной стандарт Wi-Fi | Wi-Fi 7 (802.11be) |
| Подключение Ethernet | Да |
| Тип Ethernet интерфейса | 2.5 Gigabit Ethernet |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Количество M.2 (M) слотов | 4 |
| Слоты PCI Express x16 (Gen 4.x) | 1 |
| Слоты PCI Express x16 (поколение 3.x) | 1 |
| Глубина | 243.84 |
| Ширина | 304.8 |
| Модель | MPG B850 EDGE TI WIFI |
| Количество в палете | 0 |
| Количество в транспортной упаковке | 5 |
| Объем | 0.008155 |
| Вес в упаковке | 2.5 |
