Smart Energy Monitor 3P+N,120A, DIN, Modbus RS485

Smart Energy Monitor 3P+N,120A, DIN, Modbus RS485

Available to order

1

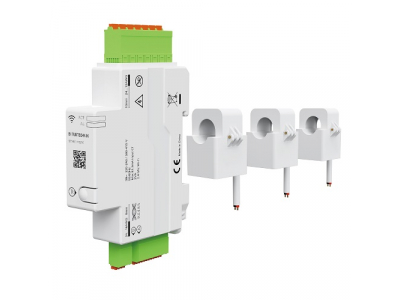

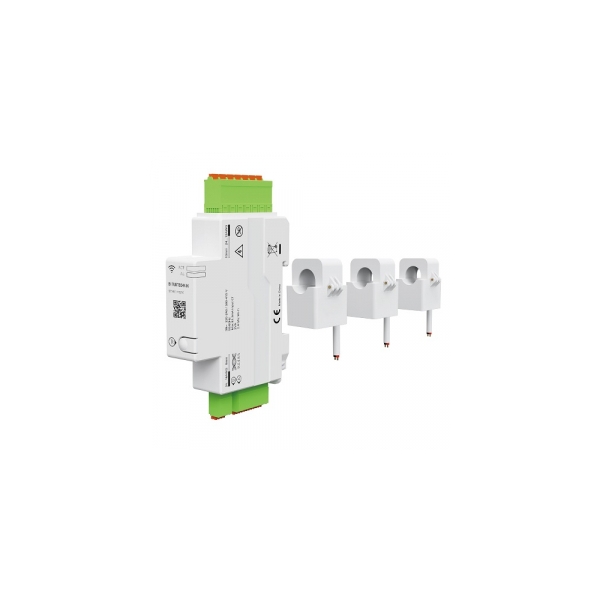

Smart Energy Monitor, 3P+N,120A, DIN, Modbus RS485  Features: The smart energy monitoring device consists of one monitor installed on DIN rail and three split-core current transformers (CTs). The smart energy monitor is an advanced device designed to effectively and accurately track energy consumption in three-phase systems with a neutral wire (3P+N). It can also be applied to a single-phase system. Advanced energy monitoring: real-time voltage, current, power, electricity consumption and frequency measurements. Current measurement up to 120A (per phase) ensures accurate monitoring of energy consumption for industrial or commercial premises. Split-core current transformers (CTs) are of 16mm diameter, they allow for quick and convenient installation of the system without interrupting the existing electricity supply. Three independent detection modules allow monitoring each phase separately and identifying energy consumption irregularities. Modbus RTU communication model is used, compatible with industrial control systems. Ensures stable and fast communication in large facilities. Three current measurement modules (Split-core CTs) are included.
 Technical specifications:  Max. current (Imax): 120 A. Operating voltage: 220~240V AC (phase-neutral)/ 380~415V AC (phase-phase). Frequency: 50/60 Hz. Insulation voltage (Ui): 440 V. Energy measurement accuracy: 1%; Class 1. Max. consumption: <2VA. Rated impulse withstand voltage (Uimp): 4 kV. Overvoltage category: III. Communication type: Modbus RTU (RS485). Reset button: yes. Installation: on DIN rail. Protection class: IP20. Operating temperature: -25°C~+70°C.
 Warranty: 24 months.
